Branch Place, Colville Estate

  • View of Clift House and Dorchester House from Branch Place

  • View of new homes along Colville Street

  • Cutaway axonometric of Clift House

  • Animated section of Clift House

  • View of Clift House at the intersection of Colville Street and a pedestrian street

  • Façade and balcony detail of Clift House

  • View of the courtyard garden at Clift House

  • Axonometric of entrance sequence and communal space at Clift House

  • Sectional model of maisonette, 1:25

  • Dwelling plan of a 3 bedroom maisonette

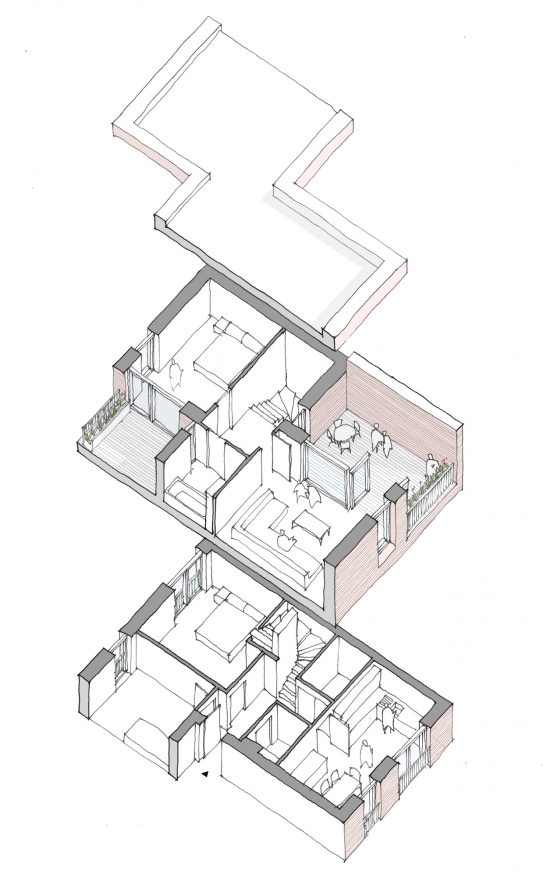

  • Exploded axonometric of a 3 bedroom maisonette

  • View from the top-floor landing of a 3 bedroom maisonette looking through to the living room

  • Living room of a 3 bedroom maisonette

  • Private terrace of flat for social rent

  • View of homes along Branch Place with street-facing front gardens

  • Ground floor entrances to homes at Clift House

  • View of Dorchester House from Bridport Place

1 / 17
Client
Hackney Council
Borough
London Borough of Hackney
Location
N1
Status
Completed 2019
Scale
1.53ha
Units and density
116 homes, 177dph
Tenure
54% social rent, 16% affordable, 30% market sale
Non-residential
130sqm retail

Branch Place is part of the second phase of our wider Colville Estate Masterplan which we have been developing since 2009. Designed in accordance to a Residents Charter and Design Code, the project is the result of a long and active programme of community engagement and provides replacement council homes, new affordable homes, carparking, playable landscapes and local shops.

The project is comprised of two buildings that were conceived together as an urban block that would contribute to a strong and consistent neighbourhood identity. Each is then articulated independently with distinct typologies, contrasting roof forms and variations in brick tone that provide individual character.

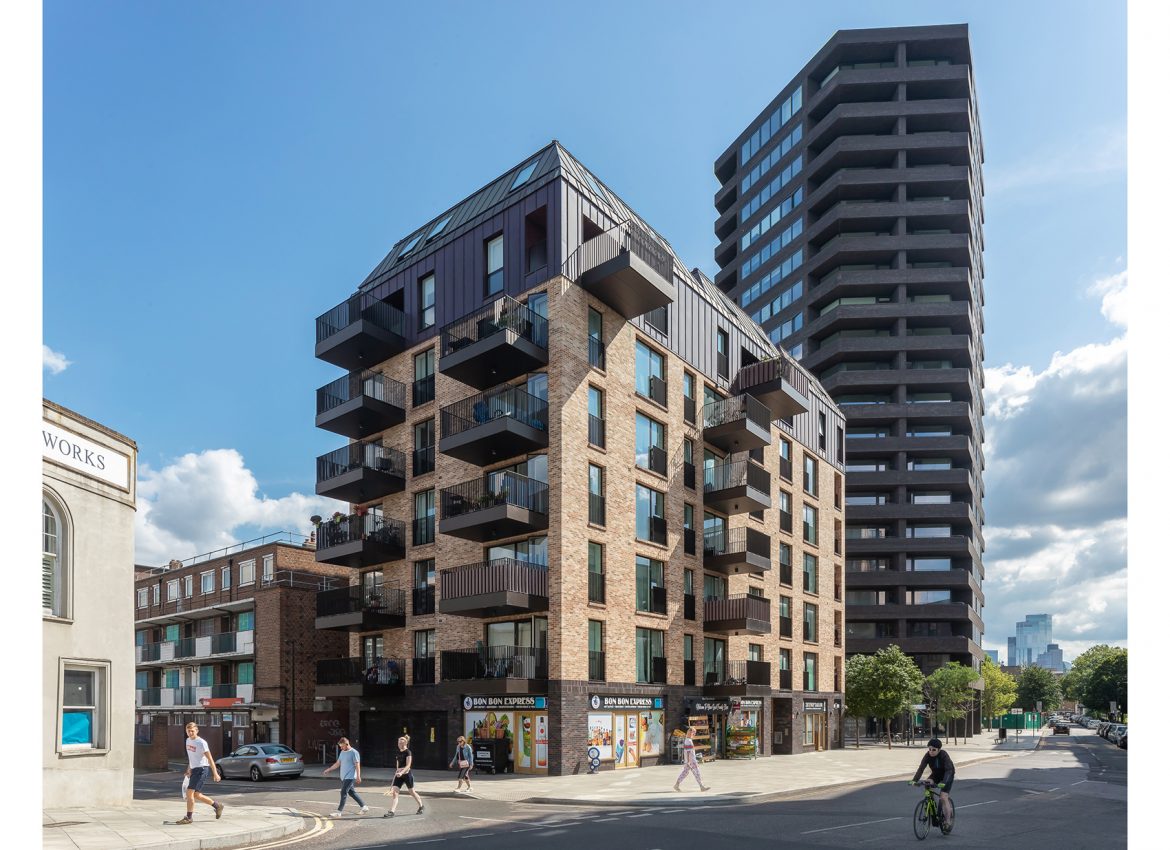

To the north‑west corner of the project is Dorchester House, a 7‑storey residential block with retail that features a striking seamed‑copper roof and metal balconies that take influence from nearby industrial warehouse buildings. At ground floor where the building addresses a corner junction at the edge of the neighbourhood there is space for a local shop.

To the east is Clift House, a courtyard building fronting Branch Place that features a raised landscaped garden with carparking underneath. In response to its different edge conditions, massing is varied.

To the south, the building line is broken down into smaller elements to form a residential terrace of homes lining Colville Street. Lowering the building heights in this way ensures light is optimised into the shared courtyard space, residential back gardens and terraces. Spacious dwellings wrap around the outdoor communal courtyard, with gated back gardens opening out to a raised landscape element to create an environment which encourages connections between neighbours.

A mixed collection of building typologies at Branch Place contributes to the variety of the townscape of the new neighbourhood, but also provides a much‑needed mix of dwelling types. The buildings occupy key plots within the masterplan’s network of public streets and pathways which improve wayfinding and establish connections to the local area, with an east‑west route reinstating the historic Colville Street through the heart of the estate and a set of north‑south pathways opening up pedestrian links between Shoreditch Park and the Regent’s Canal.

Extensive soft landscaping is woven throughout the revitalised estate neighbourhood, with native trees and shrubs improving the ecology of the area, urban climate resilience and the everyday experience of people who live there.



Design Team

Landscape
muf architecture/art, Periscope
Structures
Peter Brett Associates, Tully De’ath
Civils
Peter Brett Associates
M&E
Peter Brett Associates, Cundalls
Planning
Tibbalds Planning and Urban Design
Contractor
Higgins Construction

Awards

Housing Design Award 2020
Civic Trust Award 2020
Civic Trust Award 2020 ‑ Selwyn Goldsmith Award for Universal Design ‑ shortlist
RIBA London Award 2019 ‑ shortlist
Housing Design Awards 2013 ‑ shortlist

Photography

Agnese Sanvito (architectural model), Jim Stephenson, Peter Landers
;
