Broadwater Farm Estate

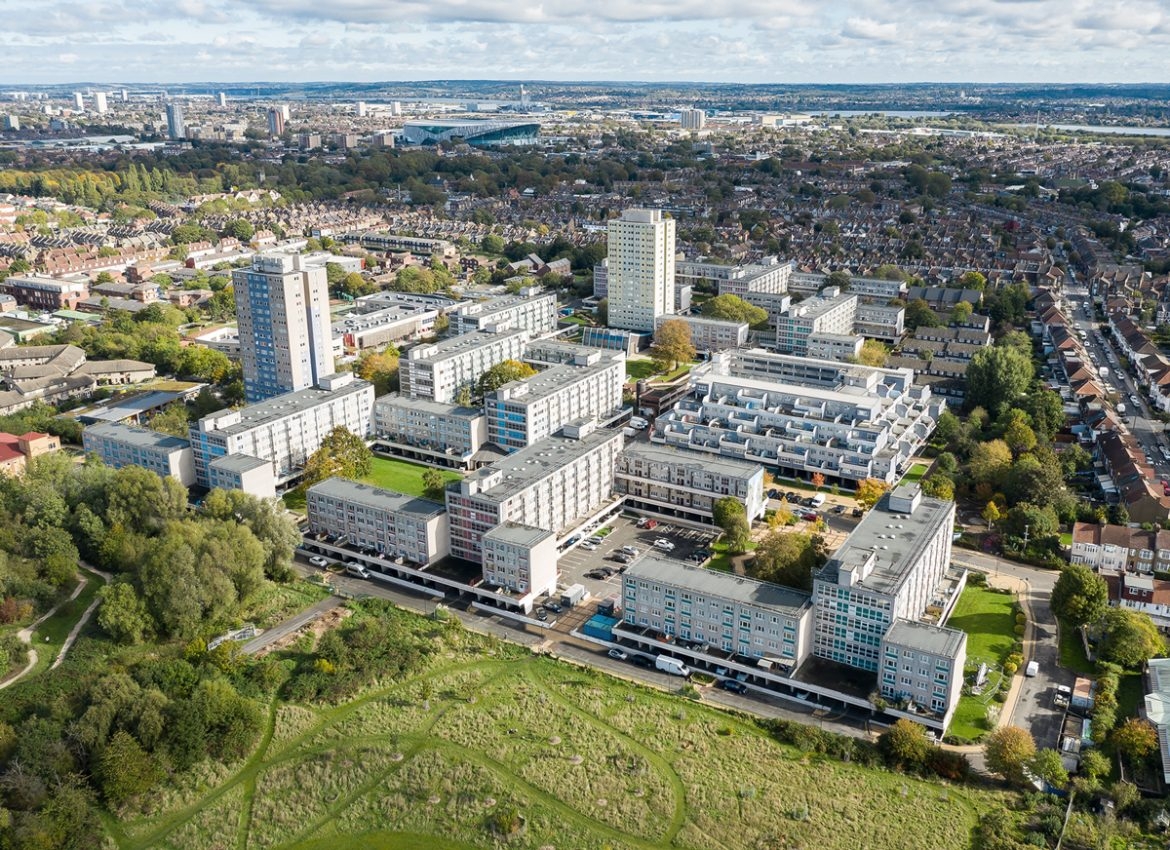

  • Aerial view of Broadwater Farm Estate looking east, 2019

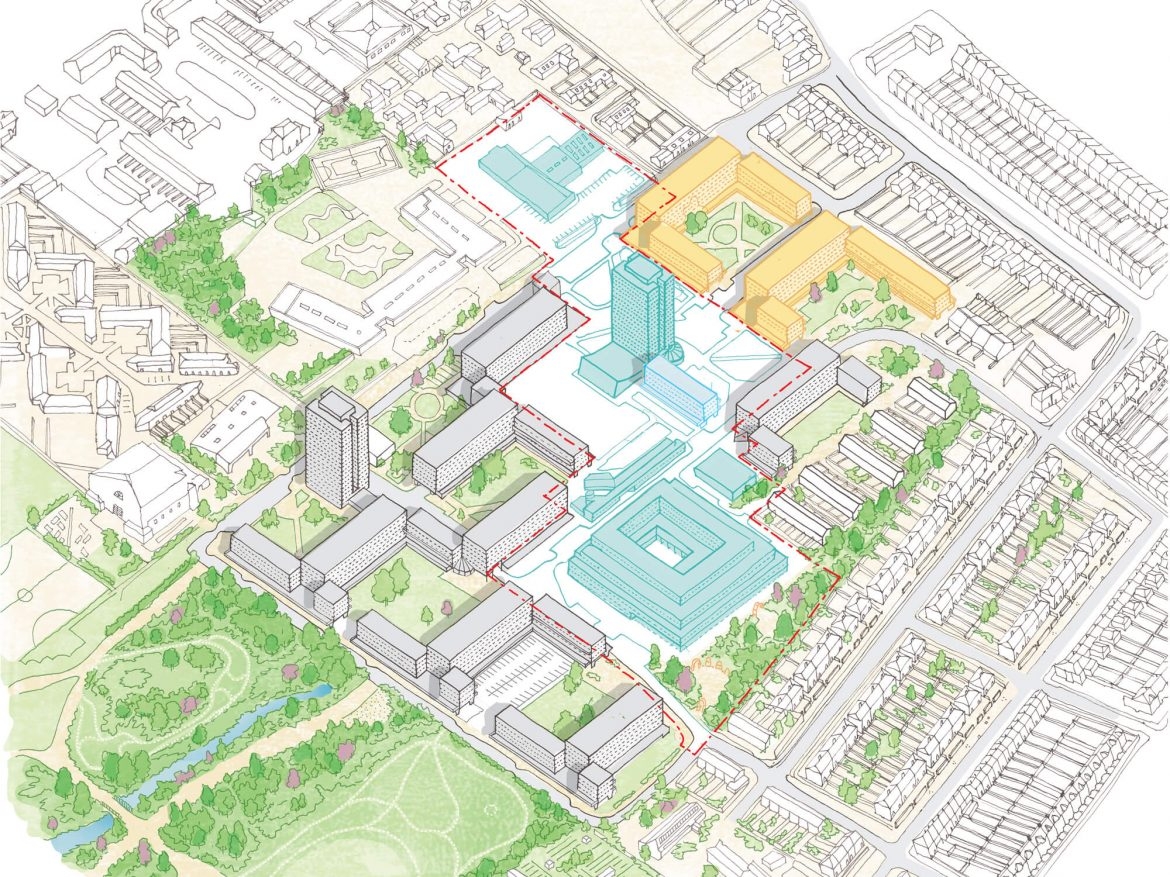

  • Axonometric of the existing estate highlighting areas for demolition (blue) and refurbishment (yellow)

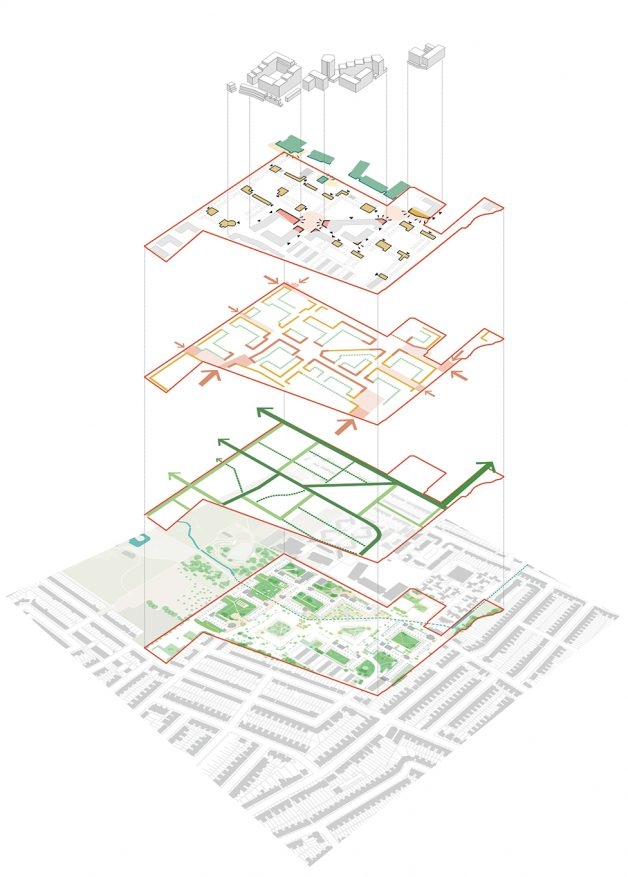

  • Exploded axonometric showing the Urban Design Framework (UDF) strategies and interventions

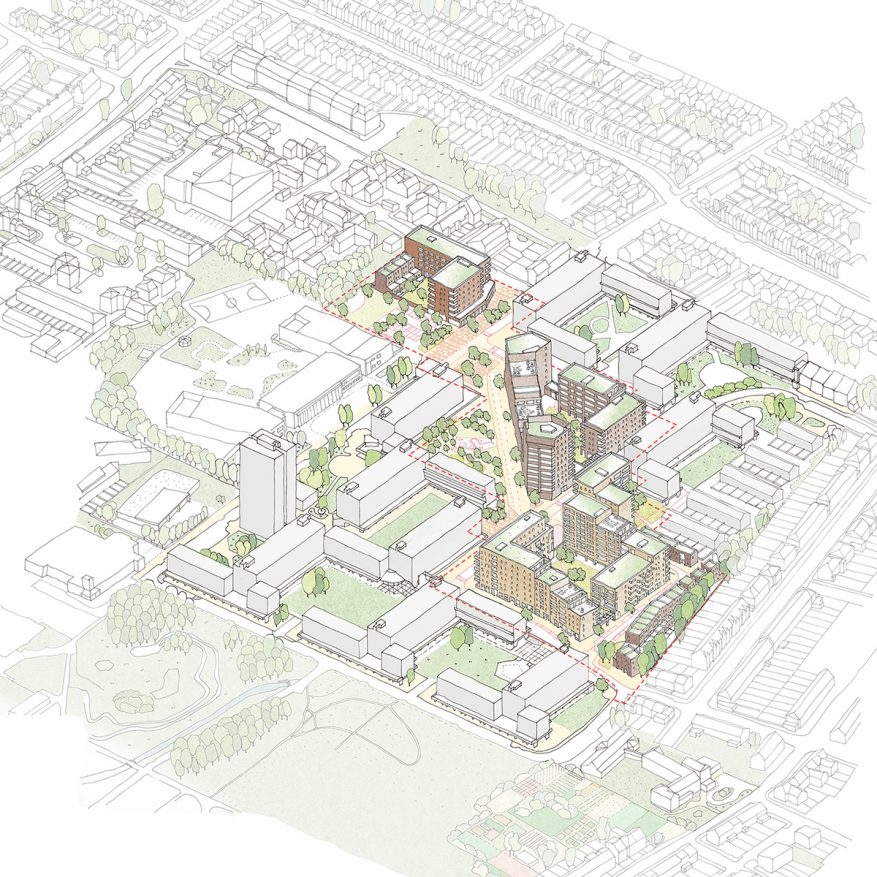

  • Axonometric of the proposed Urban Design Framework (UDF) and masterplan

  • Community engagement event, 2021

  • Community engagement event, 2021

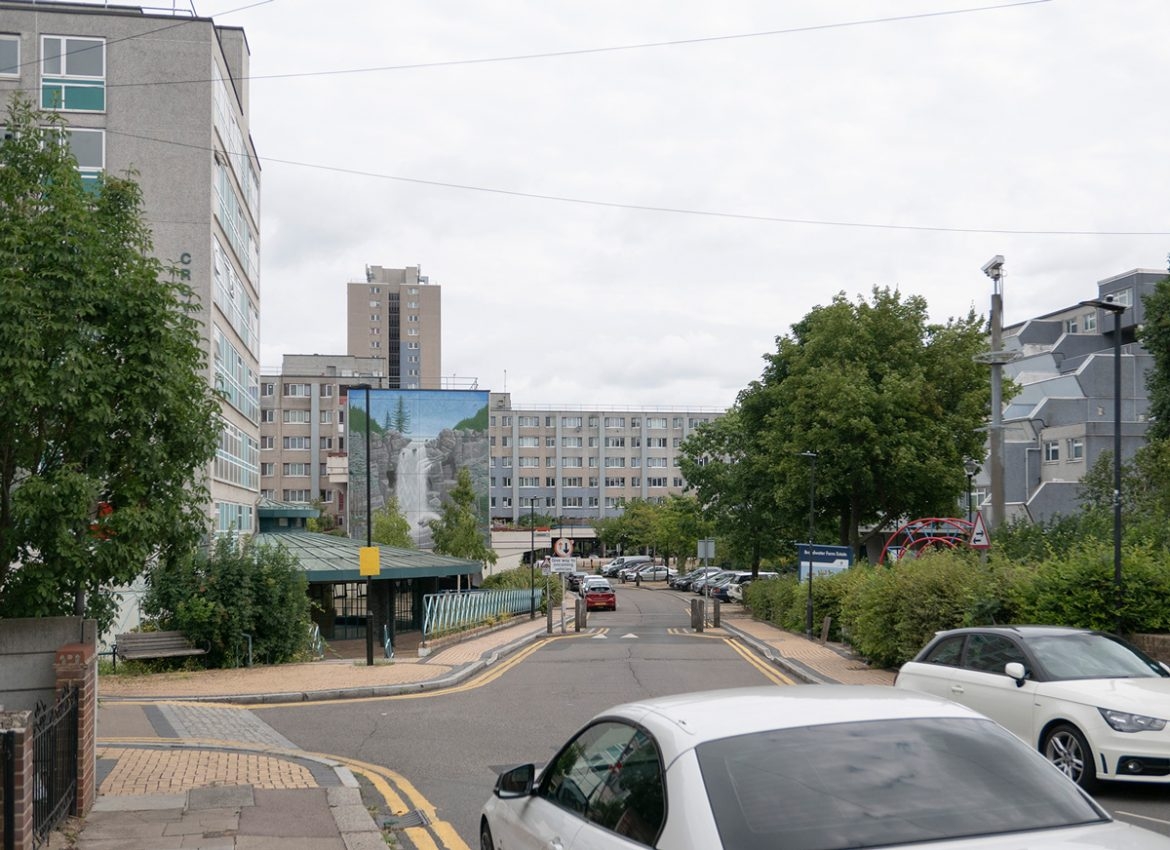

  • View of the existing Tangmere House from Gloucester Road, 2020

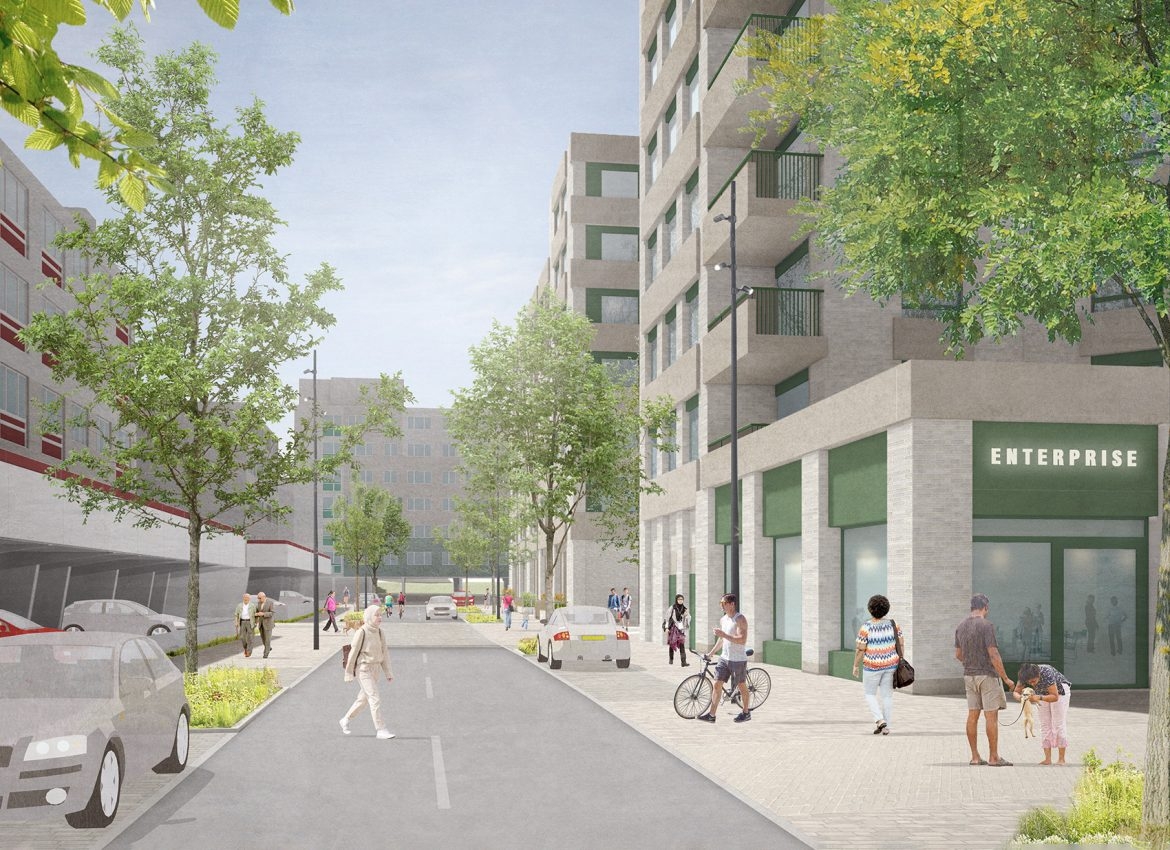

  • Illustrative view of the new Tangmere House from Gloucester Road

  • Illustrative view of of Northolt House from Gloucester Road

  • Illustrative view looking west along Wilian Road towards Lordship Recreation Ground

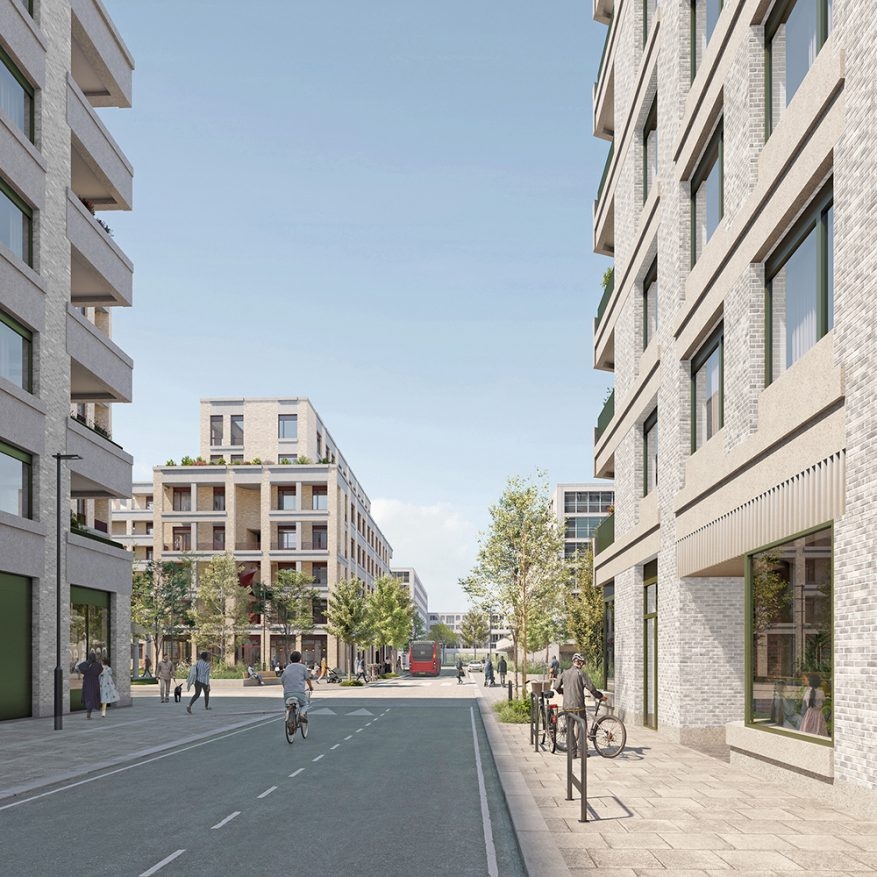

  • Illustrative view looking south along a new north-south route through the estate

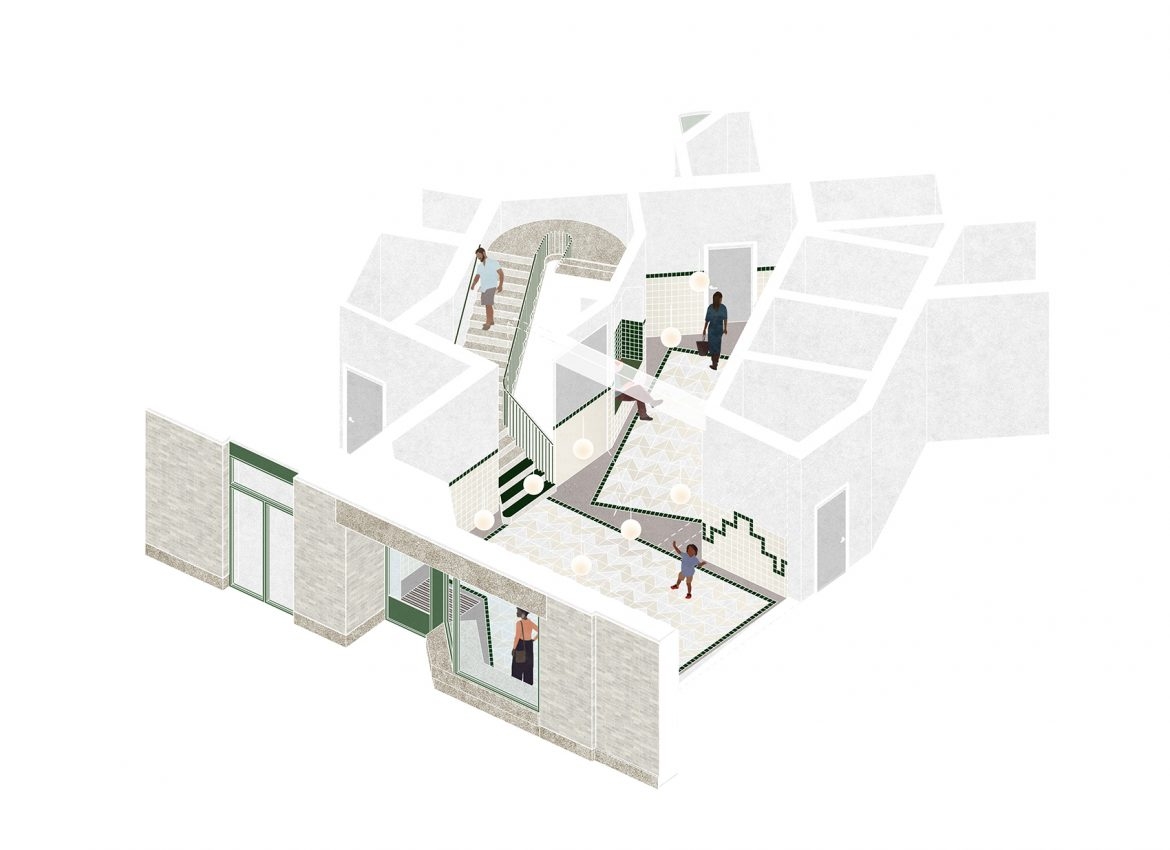

  • Axonometric of a typical communal entrance in Northolt House

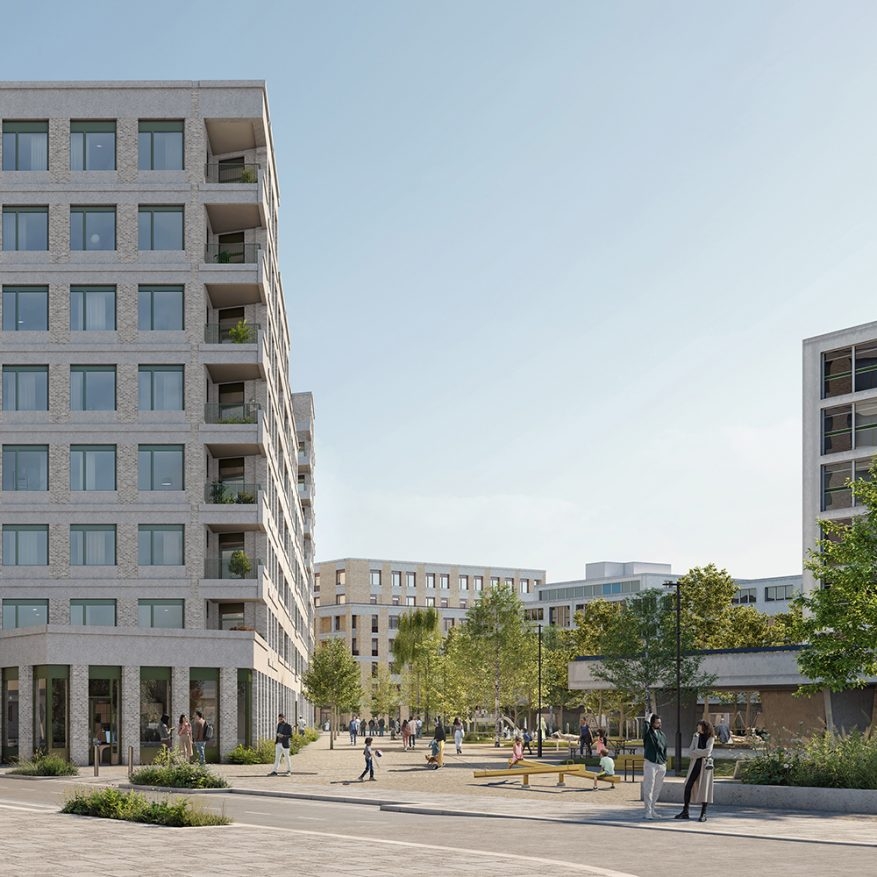

  • Illustrative view looking north towards Willan Road with Tangmere House and Northolt House in view

  • Illustrative view from the landscaped courtyard of Tangmere House

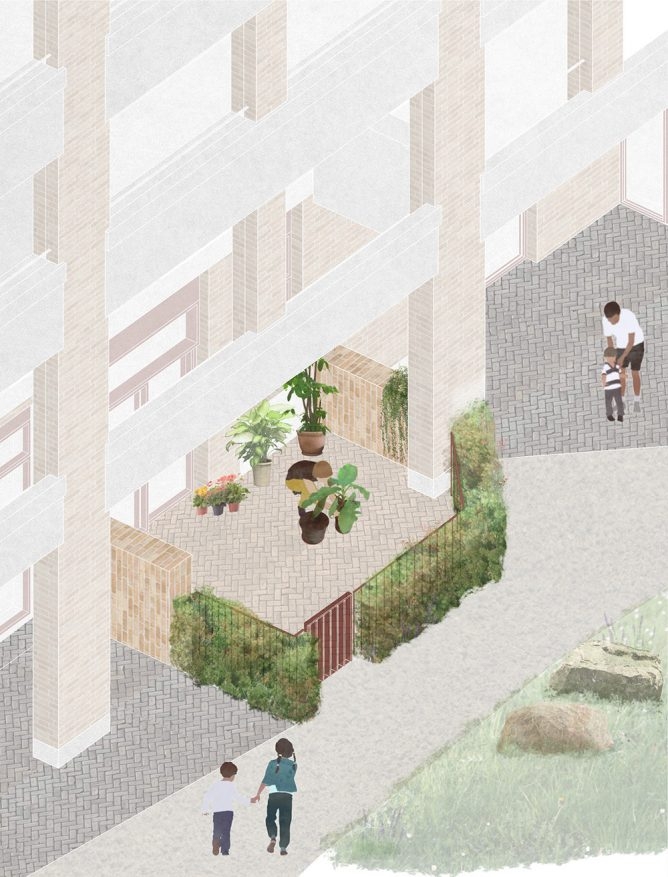

  • Illustrative view of a private back garden fronting the communal courtyard, Tangmere House

1 / 15
Client
Haringey Council
Borough
The London Borough of Haringey
Location
N17
Scale
8.46ha
Units and density
c.290‑350 new homes, 130dph
Non-residential
c.1500‑2000sqm mixed‑use space

In 2019 we were commissioned to create an Urban Design Framework (UDF) to guide substantial and long‑term improvements for the Broadwater Farm Estate in Haringey, North London. Originally built in the late 1960s, Broadwater has undergone numerous refurbishments and alterations over the past five decades. Together with the estate’s original design, these changes have created an urban environment which is not serving the present community well.

Working with the local community, our work seeks to establish a holistic design for the physical repair of the estate. Our Urban Design Framework (UDF) is being driven by seven core principles that have been agreed with residents; Movement, Public realm, Ground Floor Activity, Character, Housing, Legacy and Sustainability. This process has kick‑started and directed wider estate improvements and will function as a catalyst for future change.

Alongside establishing principles for neighbourhood change, our more localised estate designs have focused on the heart of the estate and the redevelopment of the Tangmere and Northolt sites. In our redesigns, we have challenged the estate’s car‑dominated street hierarchy, with a collection of buildings configured to create landscaped courtyards and civic spaces which all residents can use. To unite the neighbourhood, a diagonal pedestrian link which partly follows the culverted River Moselle beneath the site is planned through the estate, which will also forge a better relationship with Lordship Recreation Ground to the west.

Responding to the original design’s placement of parking at street level, with homes raised at first floor, a major part of our work has been to create a more active relationship with ground floor, and make the public realm feel safer and more enjoyable to inhabit. Throughout the neighbourhood, shops and local services are proposed at key points to be within a 15 minute walk of all homes.

To achieve an estate renewal strategy that is carbon conscious and cost‑effective, our design includes the substantial retrofit of original estate buildings. This work is being piloted across two sites, Martlesham and Rochford in retrofit programmes which will establish guidelines for wider housing refurbishments.

The project has also focused on creating opportunities for residents which extend beyond the built environment. Since the start, young estate residents have collaborated as creative freelancers with Beyond the Box Consultancy to create co‑design engagement events. From this process the ‘Lost Blocks Collective’ has been born, a group who are now hosting a podcast series to share their personal stories with a mission to create a new and more diverse narrative for Broadwater Farm.

Design Team

Landscape
East Architecture Landscape Design
Structures
Elliott Wood
Civils
Elliott Wood
M&E
XCO2
Planning
CMA Planning (Charles Moran Associates)
Community and engagement collaborator
Beyond the Box Consultants, The Means, The Glass‑House Community‑led Design
;
